Instructions
1. There are two power supply modes for this product, which
supported by 4AA batteries or 5V DC power supply.
2. Switch the power bitton to ON, the power light is on, ans the
display will show 000, whenthe forehead or wrist is 0-5cm away from
the infrared sensor or the product, the result will be showed on
the display and also reported by voice, the testing indicator light
will light up the corresponding color simultaneously.

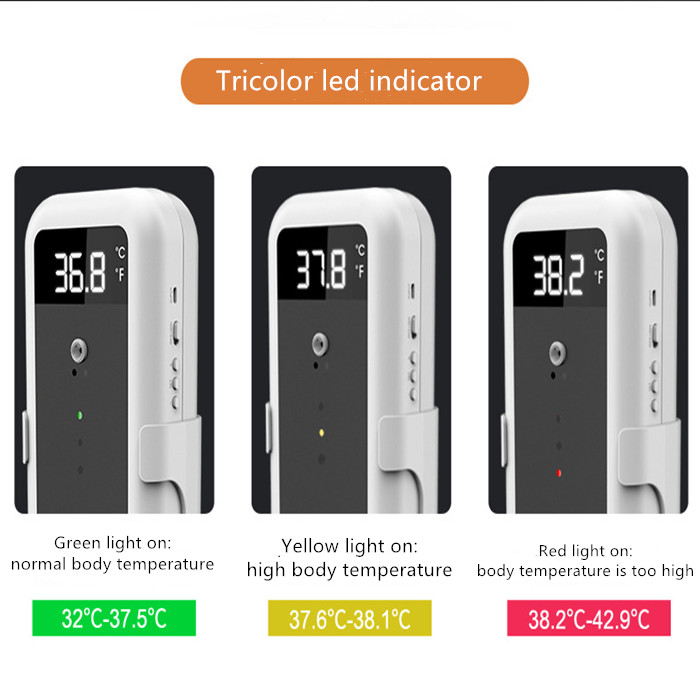

3. When the body temperature is nmal at 32-37.5 ℃, the display
shows the current measured temperature and the voice prompts that
the current temperature is normal with the green light of the test
indicator lighting up.
4.When the body temperature is abnormal at 37.6-28.1 ℃, the display
shows the current measured temperature and the voice prompt that
the current temperature is too hight with the yellow light of the
test result indicator lighting up.
5.When the body temperature is in an abnormal state between 38.2 ℃
-42.9 ℃, the display shows that the current measured temperature
and voice prompts taht the current body temperature is too high
with the red light of the test result indicator lighting up.
6.When the measured temperature is lower than 34℃, the display
shows low with the voice prompt the current measured temperature.
7. When the measured tempurature is higher 42.9 ℃, the display
shows high, and the voice prompt re-measure.
8. When the measuring until is select as ℉, the temperature taht over 100 ℉ is only display as an integer.
Meanwhile, only test result is reported by voice, actural
temperature will not be reported .
9. When the language is selected as English, only test result is
reported by voice, actual temperature will not be reported.
10.After the body temperature detection is completed, place your
hand at the bottom liquid outle within 5 CM. After the liquid
sensor detects the object, it will automatically flow out the hand
sanitiser to the hand for disinfection and sterilization. There are
3 level for liquid output. Time of liquid output: about 1.5s in L1,
about 2s is L2, about 2.5s in L3.
11. When there is no human body detecting temperature for more than
15 seconds, the system will enter the standby more intelligently,
and the display shows 000. When the infrared sensor senses that
human body, the system will automatically wake up and enter the
temperature measurement mode.
Product features
- Using high - precision infrared sensor, stable and reliable
performance.
- Automatic body temperature detection with automatic washing -free
hands sanitiser integrated, which makes disinfection more
convenient.
- Strong environmental temperature adaptability, could be used
normally in complex enviroments
- Large-size digital display, which is clear and soft.
- Two temperature units: Celsius and Fahrenheit.
- With both Chinese and English language, could be used in most
regions.
- Intelligent power saving and automatic wake-up function.
Technical parameters
| Product name | Infrared Sensor Automatic Liquid Foaming Soap Dispenser Pump With
Non-Contact Infrared Thermometer |
Product model | 001 |
| Product size | 128*70*300mm |
| Product material | ABS+PC |
Maximum power | 3w |
| Power supply | 4AA batteries or DC 5V 2.1A |
| Product function | detect body temperature and disinfect hands by senor-supported
sanitizer |
| Body temperature display | digital dipslay and voice broadcast |
| Measurement method | infrared sensor |
| Measuring distance | 1-5cm |
| Measuring rang | body temperature (32-42.9℃, 89.6-109.2℉) |
| Allow error | ±0.2 ℃ |
| Measuring time | 2 seconds |
| Filling bottle capacity | 300Ml |
| Liquid type | Wshing -free hands sanitizer, common hands sanitiser |
| Dischange method | infrared senor |
| Woring environment | 10℃-35℃(50℉-95℉), humidity<85% |
| Storage enviroment | -20℃-55℃(-4℉-131℉)humidity<85% |
| Temperature unit | Celsius/Fahrenheit |
| Weight | 670g |
| |
Support Installable
Wall Mounting Installable
Liquid replacement procedure
